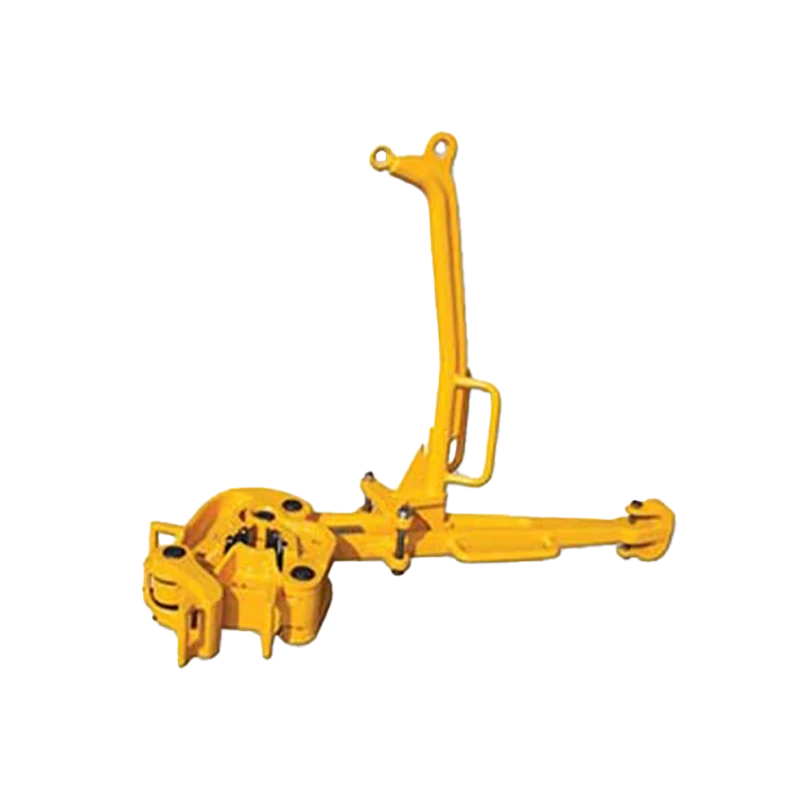

Manual Tong Type AAX

Categories Manual Tong, Handling Tools Tags handling tool, manual tong

Manual Tongs Type AXX are an essential tool in oil operation to make up and break out drill pipes. Casing joint and coupling. It can be adjusted by changing latch lug jaws and handling shoulders.

Parameter of Manual Tong Type AAX

Manual Tongs Type AXX are an essential tool in oil operation to make up and break out drill pipes. Casing joint and coupling. It can be adjusted by changing latch lug jaws and handling shoulders.

The available range of manual tongs is from 2-7/8 ~13-3/8 inches.

No. of Latch	Size Range		Rated Torque
Lug Jaw	mm	in	kN·m
1#	73 ~ 95.25	2-7/8 ~ 3-3/4	75
2#	88.9 ~ 114.3	3-1/2 ~ 4-1/2
3#	101.6 ~ 133.35	4 ~ 5-1/4
4#	127 ~ 184.15	5 ~ 7-1/4
5#	174.6 ~ 219.1	6-7/8 ~ 8-5/8
6#	228.6 ~ 273.05	9 ~ 10-3/4	40
7#	273.05 ~ 298.45	10-3/4 ~ 11-3/4
8#	339.7	2013/3/8
